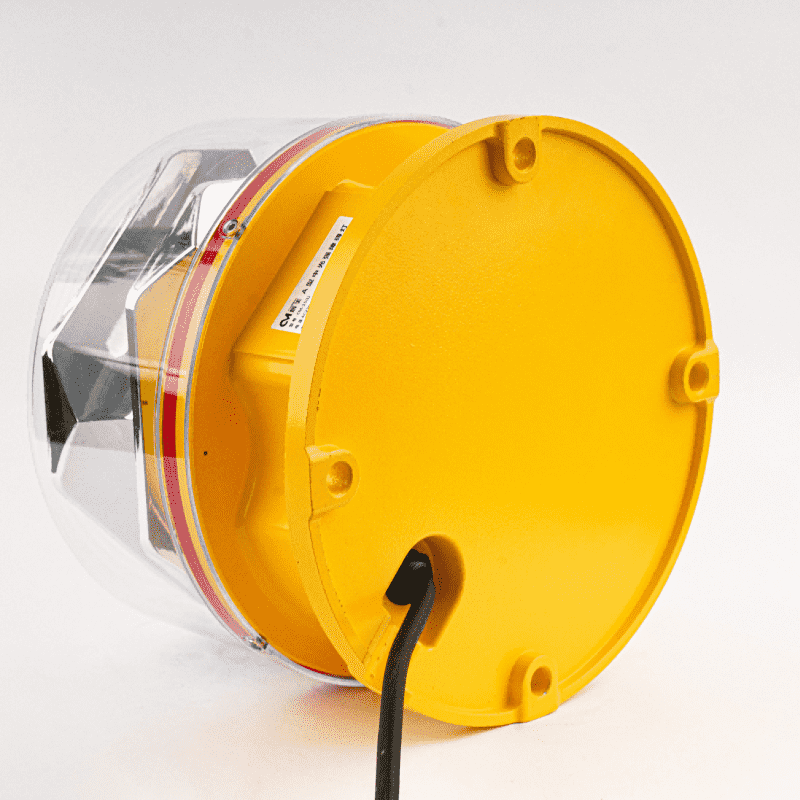

Medium intensity LED aviation obstruction light
It is suitable for installation on fixed buildings and structures, such as electrical power towers, telecom towers, chimneys, high-rise buildings, large bridges, large port machinery, wind turbines, and other obstacle-warning aircraft.
Production Description
Compliance
- ICAO Annex 14, Volume I, Eighth Edition, dated July 2018 |
- FAA 150/5345-43H L-865,L-866,L-864 |
● The lampshade is made of UV (UV) resistant PC (polycarbonate) material with a transparency of over 95%.
● The lamp base is made of precision die-cast aluminum and coated with outdoor protective powder on the outer surface. It has high strength, corrosion resistance, and anti-aging characteristics.
● Reflector based on the principle of reflection, the light utilization rate is over 95%, the light exit angle can be more accurate, the visible distance is farther, and the light pollution is eliminated.
● The light source uses a high-efficiency, low-power, long-life, high-brightness LED cold light source.
● The control system based on the single-chip computer can automatically recognize the synchronization signal without distinguishing between the main and sub-lights and can be controlled by the controller.
● The optical sensor uses a light-sensitive probe that conforms to the natural light spectrum curve to accurately control the automatic switch of the lamp.
●Lightning protection: The internal self-contained anti-surge device makes the circuit work more reliable.
●The complete set of lamps and lanterns adopts full packaging technology, which is resistant to impact, vibration, and corrosion, and can be used for a long time in harsh environments. The structure is light and firm, and the installation is simple.
●GPS sync monitoring.
Light Characteristics | CM-15 | CM-15-AB | CM-15-AC | |
Light source | LED | |||
Color | White | White/Red | White/Red | |
Lifespan of LED | 100,000hours (decay<20%) | |||
Light intensity | 2000cd(±25%)(Background Luminance≤50Lux)
20000cd(±25%) (Background Luminance50~500Lux) 20000cd(±25%) (Background Luminance>500Lux) |
|||
Flash frequency | Flashing | Flash/Steady | ||
Beam Angle | 360° horizontal beam angle | |||
≥3°vertical beam spread | ||||
Electrical Characteristics | ||||
Operating Mode | 110V to 240V AC; 24V DC, 48V DC available | |||
Power Consumption | 9W | 9W | 9W | |
Physical Characteristics | ||||
Body/Base Material | Aluminum Alloy, aviation yellow painted | |||
Lens Material | Polycarbonate UV stabilized, good impact resistance | |||
Overall Dimension(mm) | Ф268mm×206mm | |||
Mounting Dimension(mm) | 166mm×166 mm -4×M10 | |||
Weight(kg) | 5.5KG | |||
Environmental Factors | ||||
Ingress Grade | IP66 | |||
Temperature Range | -55℃ to 55℃ | |||
Wind Speed | 80m/s | |||
Quality Assurance | ISO9001:2015 |
Main P/N | Color | Type | Power | NVG Compatible | Options |
CM-15 | [Blank]:White | [Blank]:2000cd-20000cd | AC:110VAC-240VAC | [Blank]:only Red LEDS | P:Photocell |
AB:White/Red | DC1:12VDC | NVG:only IR LEDs | D:Dry Contact (connect BMS) | ||
AC:White/Red | DC2:24VDC | RED-NVG:dual Red/IR LEDs | G:GPS | ||
DC3:48VDC |
