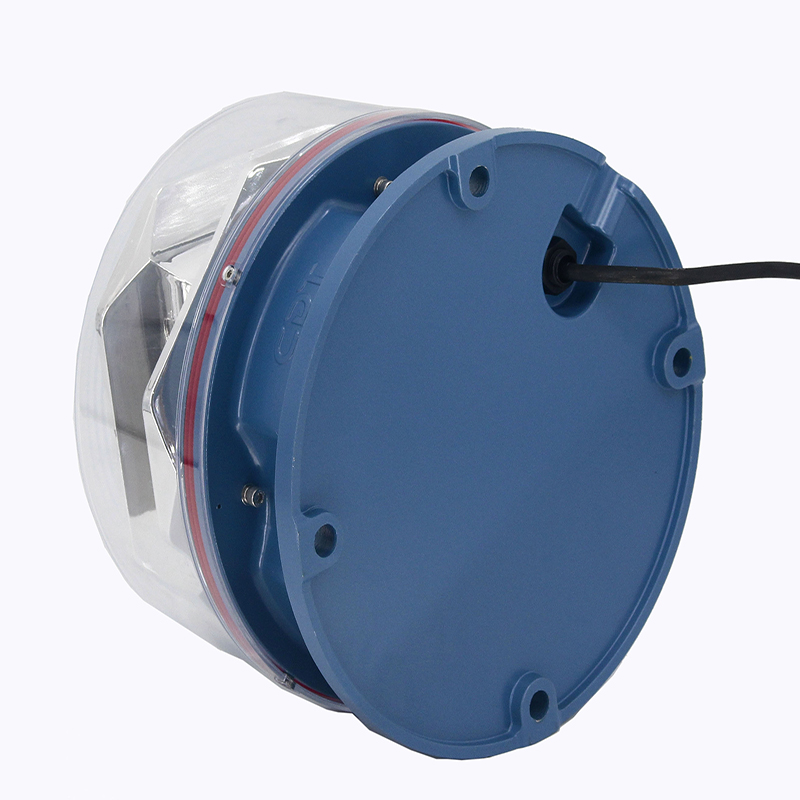

Medium Intensity LED Aviation Obstruction Light Type AB or Type AC

Short Description:

Adopt to high brightness LEDs, light intensity 2000cd-20000cd(±25%)

Color: LED White&Red

Available voltage: 110-265VAC/48VDC/24VDC,

Power Consumption:

Type AB:9W(White Flashing)/2W(Red Flashing)

Type AC:9W(White Flashing)/15W(Red Steady)

Send email to us

Product Detail

Product Tags

Compliance

ICAO Conformity,Annex 14 Volume I,Eighth Edition,dated July 2018

CE Certificate(CNAS for EMC and LVD)

Application

Widely used in various fields of the Air Force, civilian airports and obstacle free airspace, helipads, iron tower, chimney, ports, wind power plants, bridge and city high-rise buildings where require aviation warning.

Usually used above 45m and less than 150m buildings, could use alone, also could use with Medium OBL type B and Low intensity OBL type B together.

Key Feature

● Cover of the light adopts PC with anti-UV which is high efficiency light transmission up to 92%, quite high impact resistance and fits the bad environment very well.

● Holder of the light is made of aluminum alloy and painted by spraying plastics, the structure is high strength, resistance to corrosion.

● Use the special optical reflector design, the visual range further, angle more accurate, no light pollution.

● Light source adopts import high quality LED, lifespan up to 100,000 hours, low power consumption, energy efficiency and environmental protection.

● Based on the single chip computer control, automatic identification sync signal, do not distinguish the main light and auxiliary light, and also could be controlled by the controller.

● Built-in GPS and Photocell,and also can be matched with indoor and outdoor control panel.

● Same power supply voltage with synchronous signal, integrate in power supply cable, eliminate the damage by error installation caused.

● Used the photosensitive probe fit for the natural light spectrum curve, automatic control light intensity level.

● The circuit of the light has surge protection, so that the light is suitable for a harsh environment.

● Integral structure, protection level of IP66.

Drawing Structure

Parameter

Light Characteristics		CK-13-AB	CK-13-AC
Light source	LED
Color	\	White/Red(Flashing)	White/Red(Steady)
Lifespan of LED	100,000hours (decay<20%)
Light intensity	2000cd(±25%)(Background Luminance≤50Lux) 20000cd(±25%) (Background Luminance50～500Lux) 20000cd(±25%) (Background Luminance＞500Lux)
Flash frequency	Flashing/Flashing		Flashing/Steady
Beam Angle	360° horizontal beam angle
	≥3°vertical beam spread
Electrical Characteristics
Operating Mode	110V to 265V AC; 24V DC, 48V DC available
Power Consumption		9W/2W	9W/15W
Physical Characteristics
Body/Base Material	Aluminum Alloy, Blue painted
Lens Material	Polycarbonate UV stabilized, good impact resistance
Overall Dimension(mm)	Ф268mm×206mm
Mounting Dimension(mm)	166mm×166 mm -4×M10
Weight(kg)	5.5KG
Environmental Factors
Ingress Grade	IP66
Temperature Range	-55℃ to 55℃
Wind Speed	240km/h
Quality Assurance	ISO9001:2015
