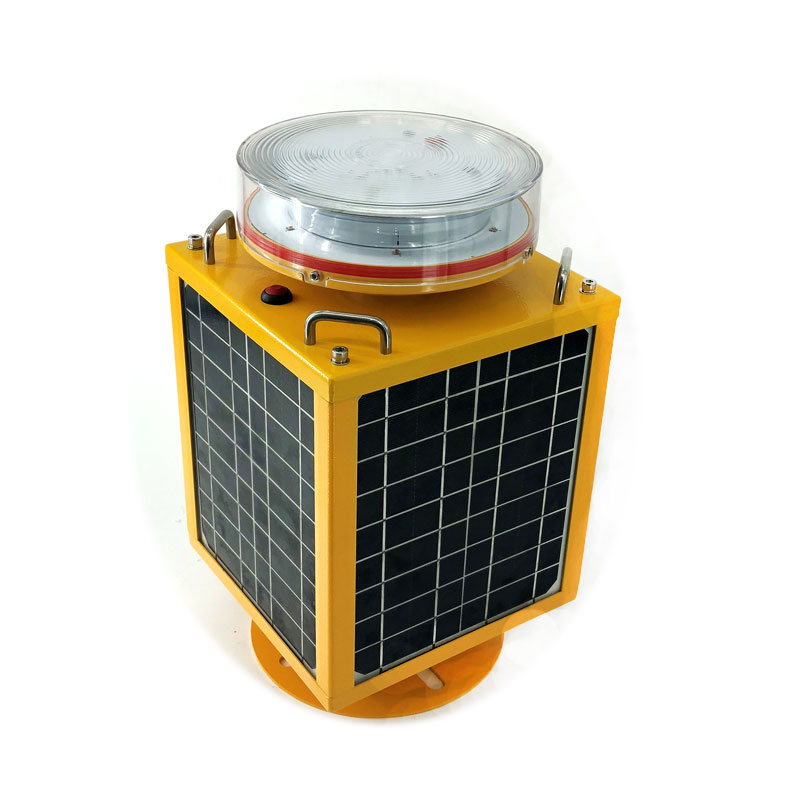

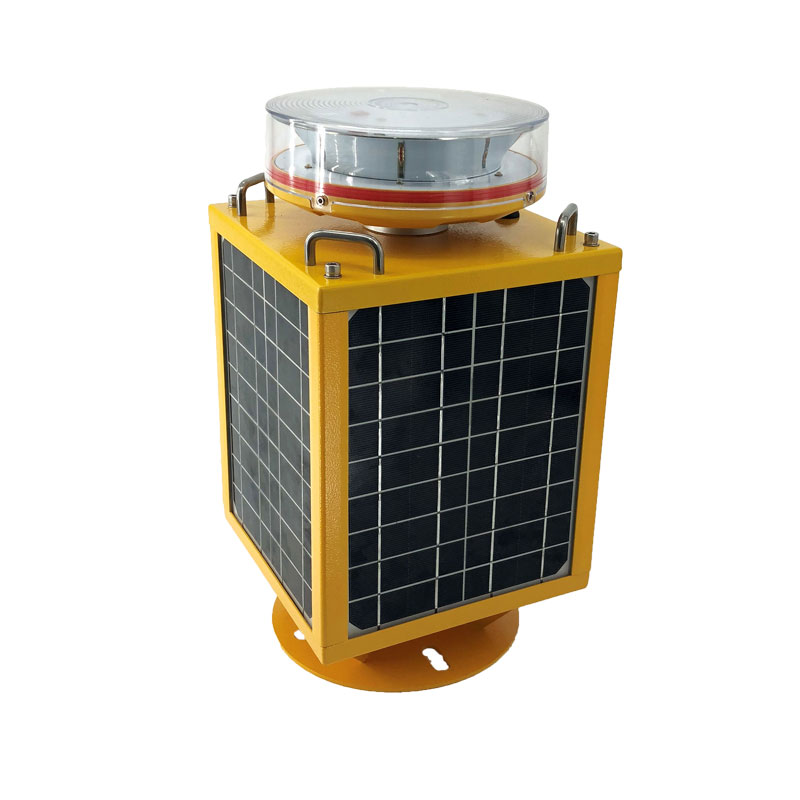

Solar Power Low intensity LED aviation obstruction light

Short Description:

It is PC and steel omnidirectional red LED aviation obstruction light. It is used to remind pilots that there are obstacles at night, and to pay attention in advance to avoid hitting obstacles.

Send email to us

Product Detail

Product Tags

Application

Suitable for installation on fixed buildings and structures, such as power towers, communication towers, chimneys, high-rise buildings, large bridges, large port machinery, large construction machinery, wind turbines and other obstacles to warn aircraft.

Production Description

Compliance

- ICAO Annex 14, Volume I, Eighth Edition, dated July 2018

- FAA AC150/5345-43G L810

Key Feature

● UV-resistant material of PC, transparency of more than 90%, strong shock resistance, excellent environment adaptability.

● SUS304 stainless steel box, aluminum alloy lamp holder, high structural strength, surface protective powder spraying outdoors, UV resistance, corrosion resistance.

● Solar battery, free maintenance, high reliability, life is more than 3 years.

● Using a low-power intelligent control system, precise management of power supply, and low power consumption is more save electricity.

● Low carbon steel glass polycrystalline silicon solar panels, high efficiency (> 18%), more than 20 years of life.

● Solar panels, the light can be fully used.

● Efficient LED light source, long life (more than 100000 hours), low power consumption, high brightness.

● Adopt appropriate natural light spectrum curves of the photosensitive sensor, accurate control automatic switch of lamps and lanterns.

● Itself surge prevention device, more reliable circuit work.

● Monolithic structure, Light protection grade reaches IP66.

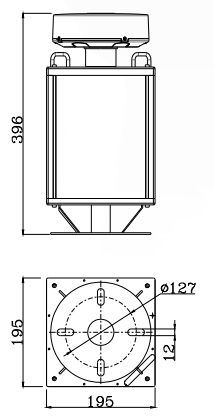

Production Structure

Parameter

Light Characteristics
Light source	LED
Color	Red
Lifespan of LED	100,000hours (decay<20%)
Light intensity	2000cd at night; 20000cd at day.
Photo sensor	50Lux
Flash frequency	Flashing / Steady
Beam Angle	360° horizontal beam angle
Beam Angle	≥3°vertical beam spread
Electrical Characteristics
Operating Mode	6VDC
Power Consumption	3W
Physical Characteristics
Body/Base Material	Steel, aviation yellow painted
Lens Material	Polycarbonate UV stabilized,good impact resistance
Overall Dimension(mm)	Ф268mm×206mm
Mounting Dimension(mm)	166mm×166 mm -4×M10
Weight(kg)	5.5kg
Environmental Factors
Ingress Grade	IP66
Temperature Range	-55℃ to 55℃
Wind Speed	80m/s
Quality Assurance	ISO9001:2015

Ordering Codes

Main P/N	Type	Power	Flashing	NVG Compatible	Options
CM-11-T	A:10cd	[Blank]:6VDC	[Blank] :Steady	[Blank]:only Red LEDS	P:Photocell
	B:32cd		F20: 20FPM	NVG:only IR LEDs	G:GPS
			F30:30FPM	RED-NVG:dual Red/IR LEDs
			F40:40FPM
