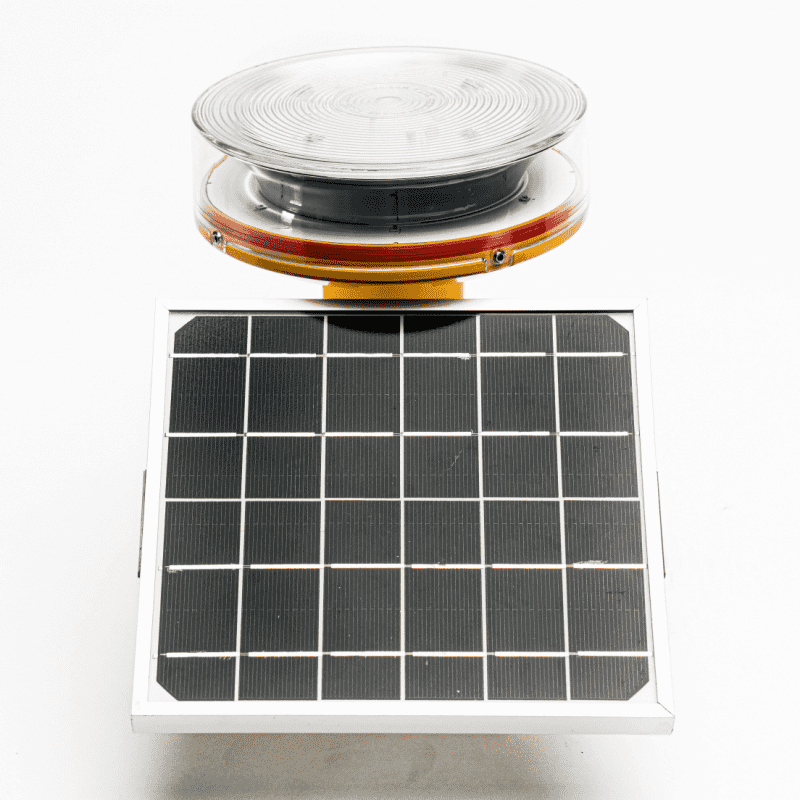

Solar Power Low intensity red aviation obstruction light

Short Description:

This is a self-contained, maintenance-free solar powered aircraft warning light. It comes with solar panels and batteries and does not require an external power source.

Send email to us

Product Detail

Product Tags

Application

Suitable for installation on fixed buildings and structures, such as power towers, communication towers, chimneys, high-rise buildings, large bridges, large port machinery, large construction machinery, wind turbines and other obstacles to warn aircraft.

Production Description

Compliance

- ICAO Annex 14, Volume I, Eighth Edition, dated July 2018

- FAA AC150/5345-43G L810

Key Feature

● PC Lamp Cover,anti-UV,90% light transmission,high impact resistance.

● aluminum alloy base, spray yellow paint.

● Lithium battery for solar energy, free maintenance and high reliability.

● Based on single-chip micro-power control, it can precisely control charging and discharging.

● Monocrystalline silicon solar panels, energy efficiency high (> 18%).

● LED Light source.

● Built-in photosensitive probe, automatic control light intensity level.

● Built-in surge protection.

● Monolithic structure,IP66.

Product Structure

Parameter

Light Characteristics
Light source	LED
Color	Red
Lifespan of LED	100,000hours (decay<20%)
Light intensity	10cd, 32cd at night
Photo sensor	50Lux
Flash frequency	Steady
Beam Angle	360° horizontal beam angle
Beam Angle	≥10°vertical beam spread
Electrical Characteristics
Operating Mode	3.7VDC
Power Consumption	3W
Physical Characteristics
Body/Base Material	steel, aviation yellow painted
Lens Material	Polycarbonate UV stabilized,good impact resistance
Overall Dimension(mm)	318mm×205mm×162mm
Mounting Dimension(mm)	Ф120mm -4×M10
Weight(kg)	2.4kg
Solar Power Panel
Solar panel Type	Monocrystalline silicon
Solar Panel Dimension	20519515mm
Solar Panel Power Consumption/Voltage	6.5W/6V
Solar Panel Lifespan	20 years
Batteries
Battery Type	Lithium battery
Battery Capacity	8.8Ah
Battery Voltage	4.2V
Battery Lifespan	5 years
Environmental Factors
Ingress Grade	IP66
Temperature Range	-55℃ to 55℃
Wind Speed	80m/s
Quality Assurance	ISO9001:2008

Ordering Codes

Main P/N	Type	Power	Flashing	NVG Compatible	Options
CM-11-TZ	A: 10cd	[Blank]:3.7VDC	[Blank] :Steady	[Blank]:only Red LEDS	P:Photocell
	B:32cd		F20: 20FPM	NVG:only IR LEDs	G:GPS
			F30:30FPM	RED-NVG:dual Red/IR LEDs
			F40:40FPM
